How To Use Telescope Mounts (Alt-Azimuth Vs. Equatorial)

Ever gazed at the night sky and wondered how astronomers capture those stunning images or precisely track celestial objects? The secret lies not just in the telescope itself, but in the mount that holds it steady. This guide, starting with How to Use Telescope Mounts (Alt-Azimuth vs. Equatorial), will demystify the world of telescope mounts, exploring the two primary types: Alt-Azimuth and Equatorial.

Get ready to discover how these mounts work, how to use them, and which one might be the perfect fit for your stargazing adventures.

Telescope mounts are essential for astronomy, providing stability and enabling us to observe the cosmos. Alt-Azimuth mounts move up/down and left/right, ideal for visual observing and simplicity. Equatorial mounts, however, align with Earth’s rotation, allowing for effortless tracking of stars as they move across the sky. We’ll delve into their features, advantages, and disadvantages, equipping you with the knowledge to choose and use the right mount for your astronomical pursuits.

Introduction to Telescope Mounts

A telescope mount is a crucial component of any telescope system, serving as the supporting structure and the mechanism for pointing and tracking celestial objects. Without a good mount, even the most powerful telescope becomes significantly less effective. Understanding the purpose and types of telescope mounts is essential for any aspiring astronomer.A telescope mount is essentially the base and support system for a telescope.

Its primary role is to hold the telescope securely and allow for precise movements to locate and follow objects in the night sky. The mount enables users to aim the telescope and keep the target object within the field of view, compensating for the Earth’s rotation. This function is vital for observing faint objects, taking long-exposure astrophotography, and enjoying a comfortable observing experience.

The Importance of a Stable Mount

A stable mount is paramount for a satisfying observing experience. Any vibrations or instability in the mount will significantly degrade image quality, making it difficult to see fine details in celestial objects.

• Image Sharpness: A wobbly mount blurs the image, making it challenging to discern details in planets, nebulae, and galaxies.
• Tracking Accuracy: A stable mount provides more accurate tracking, allowing you to keep objects centered in the eyepiece for extended periods. This is particularly crucial for astrophotography.
• Magnification Limits: A shaky mount limits the useful magnification of a telescope. Higher magnifications amplify vibrations, rendering the image unusable.
• Observing Comfort: A stable mount allows for a more relaxed and enjoyable observing session. You won’t constantly be chasing the target object, which can be frustrating.

Types of Telescope Mounts

Telescope mounts come in various designs, each with its advantages and disadvantages. The two main categories are Alt-Azimuth mounts and Equatorial mounts. Other specialized mounts exist, but these two are the most commonly used.

• Alt-Azimuth Mounts: These mounts move the telescope in altitude (up and down) and azimuth (left and right) directions, similar to how a camera tripod works. They are generally simpler and more affordable than equatorial mounts.
• Equatorial Mounts: These mounts are designed to align with the Earth’s rotational axis, allowing for easier tracking of celestial objects as they move across the sky. They are often preferred for astrophotography.

Alt-Azimuth Mounts

Alt-Azimuth mounts are a common and user-friendly type of telescope mount, perfect for beginners and casual stargazers. They are relatively simple to operate and offer a straightforward way to explore the night sky.

Basic Movement of an Alt-Azimuth Mount

The Alt-Azimuth mount moves in two primary directions, allowing you to point your telescope at any spot in the sky.The movement is similar to how you would point your finger:

• Altitude: This is the up-and-down motion, measuring the angle above the horizon. Think of it as the ‘height’ of the object you are observing.
• Azimuth: This is the left-to-right motion, measuring the angle around the horizon. It’s like the compass direction of the object.

How an Alt-Azimuth Mount Works in Terms of Altitude and Azimuth Axes

The alt-azimuth mount functions by pivoting around two perpendicular axes: an altitude axis and an azimuth axis. These axes allow the telescope to move freely in both altitude and azimuth.The altitude axis allows the telescope to move vertically, pointing it higher or lower in the sky. The azimuth axis allows the telescope to move horizontally, rotating it around to point in different compass directions.

By combining movements along these two axes, the telescope can be pointed at any point in the sky.

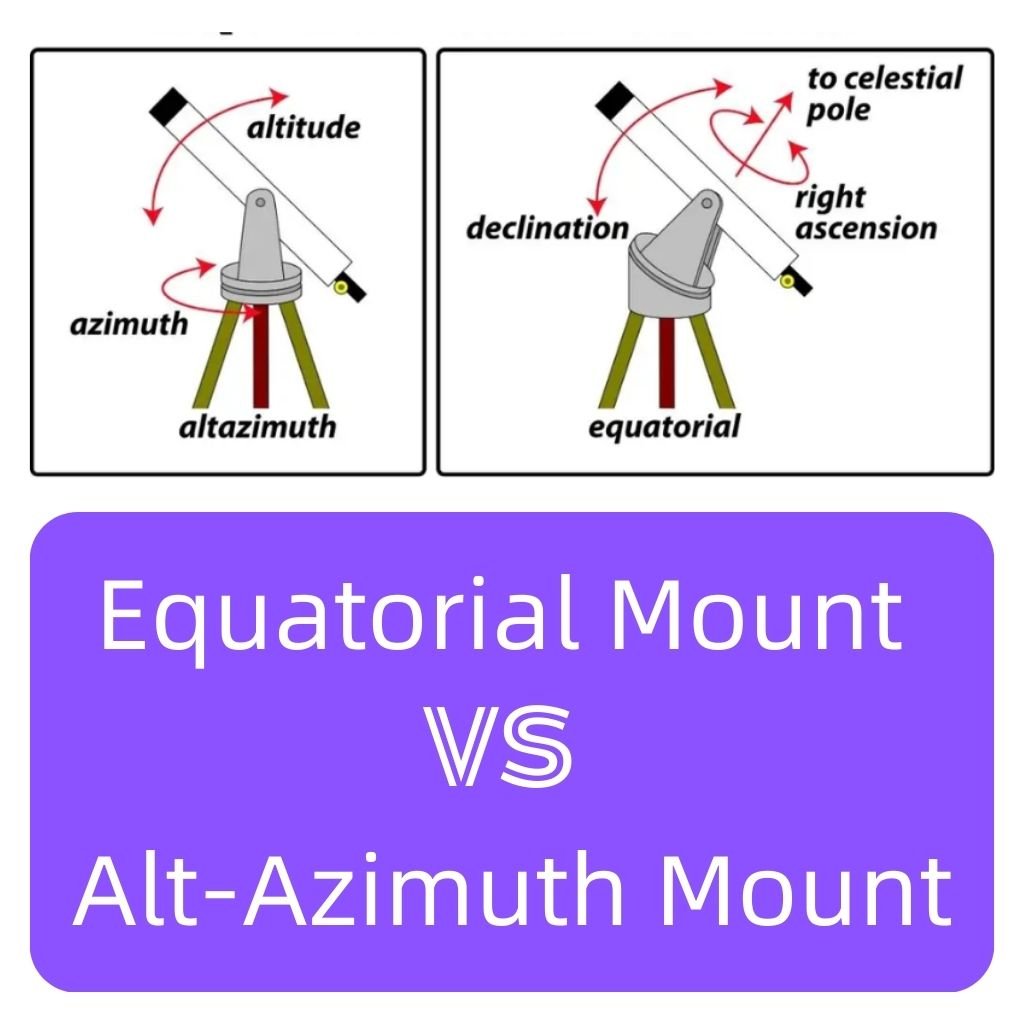

Visual Representation of the Alt-Azimuth Mount’s Axes of Motion

Imagine a simple alt-azimuth mount. The telescope sits on a base.
The image would look like this:
The base is the foundation. A vertical pillar rises from the base. At the top of the pillar is the azimuth axis.

The telescope’s body is attached to the azimuth axis. The altitude axis is a horizontal pivot point, located where the telescope’s tube attaches to the mount. When you move the telescope up and down, you are rotating it around the altitude axis. When you rotate the telescope left and right, you are rotating it around the azimuth axis.

This system of two axes allows for easy and intuitive pointing.

Advantages of Alt-Azimuth Mounts

Alt-Azimuth mounts offer several advantages that make them popular choices for many amateur astronomers.

• Simplicity: They are mechanically simple, with fewer moving parts compared to equatorial mounts. This makes them easier to understand, assemble, and use.
• Affordability: Due to their simpler design, alt-azimuth mounts are generally more affordable than equatorial mounts, making them a great option for those on a budget.
• Intuitive Use: The up/down and left/right movements are natural and easy to grasp, making them beginner-friendly.

Using an Alt-Azimuth Mount

Alt-azimuth mounts are popular for their simplicity and ease of use, making them a great starting point for beginners. They move in altitude (up and down) and azimuth (left and right), mimicking the way we perceive the sky. This section details how to set up, use, and understand the limitations of these mounts.

Setting Up an Alt-Azimuth Mount

Setting up an alt-azimuth mount is generally straightforward. Here’s a step-by-step guide:

1. Assemble the Mount: Carefully unpack the mount components. Attach the tripod legs to the mount head, ensuring they are securely fastened. Follow the manufacturer’s instructions, as designs can vary.
2. Level the Tripod: Use the built-in bubble level on the mount head or a separate level. Adjust the tripod legs until the mount is level. This is crucial for smooth tracking, especially if your mount has slow-motion controls.
3. Attach the Telescope Tube: Securely attach the telescope tube to the mount. This typically involves clamping the tube rings or dovetail bar to the mount’s saddle. Make sure the telescope is balanced by sliding it within the rings if necessary.
4. Install the Eyepiece: Insert an eyepiece into the focuser. This allows you to view the objects you’re observing.
5. Optional: Add Accessories: Attach any desired accessories, such as a finderscope or a star diagonal. The finderscope is particularly useful for locating objects.

Finding and Tracking Objects with an Alt-Azimuth Mount

Finding and tracking objects with an alt-azimuth mount is a manual process, but it can be very rewarding. Here’s how to do it:

1. Using a Finderscope: A finderscope is a small, low-power telescope attached to the main telescope. It makes it easier to locate objects. First, align the finderscope with the main telescope. This involves pointing both at a distant, easily identifiable object (like a telephone pole) during the day and adjusting the finderscope’s alignment screws until the object is centered in the finderscope’s crosshairs.

2. Locating Objects: Use star charts or astronomy apps to identify the object you want to observe. Point the telescope in the general direction of the object. Use the finderscope to refine your aim, centering the object in the finderscope’s crosshairs.
3. Viewing Through the Eyepiece: Once the object is centered in the finderscope, look through the eyepiece of the main telescope. You should see the object, or be very close to it. Adjust the focus until the image is sharp.
4. Tracking Objects: Because the Earth rotates, celestial objects appear to move across the sky. Alt-azimuth mounts track this movement by manually adjusting the altitude and azimuth axes. Use the slow-motion controls to keep the object centered in the eyepiece. This is more challenging at higher magnifications, as the object will drift out of view more quickly.

Aligning an Alt-Azimuth Mount with the Horizon

While not strictly “alignment” in the same way as with equatorial mounts, ensuring your alt-azimuth mount is level is essential for proper function. This ensures that the altitude axis is perpendicular to the horizon.

1. Level the Tripod: As mentioned in the setup procedure, use the built-in bubble level or a separate level to ensure the tripod is level before attaching the mount head.
2. Check the Mount Head: Many alt-azimuth mounts have a built-in bubble level on the mount head itself. Use this to fine-tune the leveling of the mount.
3. Adjust Tripod Legs: If the bubble level indicates the mount is not level, adjust the tripod legs individually until the bubble is centered.
4. Importance of Leveling: A level mount ensures that the telescope moves smoothly in both altitude and azimuth. It also helps prevent strain on the mount’s gears and bearings.

Limitations of Alt-Azimuth Mounts for Long-Exposure Astrophotography

Alt-azimuth mounts are less suitable for long-exposure astrophotography due to their inherent tracking limitations. The Earth’s rotation causes objects to appear to move in a curved path across the sky. Alt-azimuth mounts track this movement in a non-linear way, resulting in field rotation.

Field Rotation Explained: Field rotation is the apparent rotation of the objects in the image as the Earth rotates. This causes stars to appear as trails instead of points, and it becomes more pronounced with longer exposures and near the zenith (the point directly overhead).

Why it Matters: For long-exposure astrophotography, where exposures can last for minutes or even hours, field rotation is a significant issue. It renders the images unusable because the stars are not pinpoints.

Example: Imagine taking a 5-minute exposure of the Andromeda Galaxy with an alt-azimuth mount. Due to field rotation, the stars in the image would appear as curved streaks, blurring the details of the galaxy. A dedicated equatorial mount is needed to compensate for the Earth’s rotation.

Equatorial Mounts

Equatorial mounts are the workhorses of serious amateur astronomy. Unlike the simple up-down and left-right motions of an Alt-Azimuth mount, equatorial mounts are designed to follow the apparent motion of celestial objects across the night sky. This design offers significant advantages for astrophotography and long-duration observation.

Equatorial Mount Movement

Equatorial mounts achieve their tracking ability by rotating around a single axis, called the right ascension (RA) axis, that is parallel to the Earth’s axis of rotation. This axis is aligned with the celestial pole, the point in the sky around which the stars appear to rotate. The mount also has a declination (Dec) axis, which allows the telescope to be pointed at different declinations (celestial latitude).

By rotating the RA axis at a constant rate, the mount compensates for the Earth’s rotation, effectively keeping the telescope pointed at a specific object.

Right Ascension and Declination

The equatorial coordinate system uses two coordinates, Right Ascension (RA) and Declination (Dec), to pinpoint the location of objects in the sky.

• Right Ascension (RA): This is analogous to longitude on Earth, measured in hours, minutes, and seconds, increasing eastward. Think of it as the celestial equivalent of a star’s “longitude.” A star’s RA value determines when it will cross your local meridian (the imaginary line running from north to south through the zenith).
• Declination (Dec): This is analogous to latitude on Earth, measured in degrees, minutes, and seconds, with positive values for objects north of the celestial equator, negative values for objects south of the celestial equator, and zero at the celestial equator. It represents the angular distance of an object north or south of the celestial equator.

An equatorial mount allows you to set these coordinates on the mount, and then the mount will automatically track the object.

Visual Representation of Equatorial Mount Axes

Imagine a globe (Earth). An equatorial mount is designed to mimic the Earth’s rotation, but in reverse. The key to understanding an equatorial mount is visualizing its axes of motion.The mount’s RA axis is like the Earth’s axis of rotation. Picture a solid rod passing through the center of the Earth, extending into space. The mount’s RA axis is similarly aligned, pointing towards the celestial pole (very close to Polaris, the North Star, in the northern hemisphere).

The telescope is attached to the mount in a way that allows it to rotate around this RA axis.The Dec axis is perpendicular to the RA axis. It’s the axis around which you adjust the telescope to point to different declinations. Think of it as the tilt of your telescope relative to the RA axis. By adjusting the declination, you can point your telescope to any celestial object, whether it’s near the celestial equator or close to the celestial pole.The mount uses motors (often with a “go-to” system) to drive the RA axis at a constant rate, tracking the apparent movement of the stars.

The Dec axis allows for initial alignment to the desired celestial object.

Advantages of Equatorial Mounts

Equatorial mounts offer significant advantages, especially for long-exposure astrophotography and detailed observation of celestial objects.

• Tracking Celestial Objects: The primary advantage is their ability to track celestial objects by compensating for the Earth’s rotation. This is achieved by the RA axis rotating at the sidereal rate (approximately once every 23 hours, 56 minutes, and 4 seconds). This precise tracking is essential for astrophotography, where long exposures are needed to capture faint details of nebulae, galaxies, and other deep-sky objects.

• Simplified Tracking: Once aligned and the RA axis is properly tracking, you only need to make small adjustments to the Dec axis to keep the object centered in the eyepiece or on the camera sensor.
• Astrophotography Capabilities: Equatorial mounts are crucial for astrophotography. They eliminate star trailing, a common problem with Alt-Azimuth mounts during long exposures, where the Earth’s rotation causes stars to appear as streaks.
• Stability and Precision: Equatorial mounts are generally more stable than Alt-Azimuth mounts, especially those with sturdy construction. This stability contributes to more precise tracking and less vibration during observations and astrophotography.

Using an Equatorial Mount

An equatorial mount is the astronomer’s best friend when it comes to long-exposure astrophotography and precise tracking of celestial objects. Unlike the alt-azimuth mount, which moves in altitude and azimuth, the equatorial mount is designed to compensate for the Earth’s rotation, allowing it to follow stars across the night sky with a single axis movement. This section will guide you through setting up and using an equatorial mount, emphasizing the critical process of polar alignment.

Setting Up an Equatorial Mount

Setting up an equatorial mount correctly is crucial for its performance. The process, while slightly more involved than setting up an alt-azimuth mount, is essential for accurate tracking.

1. Assemble the Mount: Carefully follow the manufacturer’s instructions to assemble the mount. This usually involves attaching the tripod legs, the mount head, and any counterweights. Ensure all connections are secure.
2. Level the Tripod: Use a bubble level or the built-in level on your mount to ensure the tripod is level. Adjust the tripod legs until the level indicates a horizontal surface. This provides a stable base for the mount.
3. Attach the Telescope: Securely attach your telescope to the mount’s saddle. Make sure the telescope is balanced by sliding it along the saddle until it remains stationary in any position.
4. Balance the Telescope (Declination Axis): Loosen the declination axis lock. Point the telescope in any direction. Add or remove counterweights to balance the telescope. Tighten the declination lock once balanced.
5. Balance the Telescope (Right Ascension Axis): Loosen the right ascension (RA) axis lock. The telescope should now be able to move freely on the RA axis. Adjust the counterweight shaft until the telescope is balanced. Tighten the RA lock.
6. Polar Alignment (the most critical step): This is the process of aligning the mount’s RA axis with the Earth’s rotational axis. The accuracy of your polar alignment determines the mount’s tracking ability. Several methods are available, which will be detailed in the following sections.

Importance of Polar Alignment for Accurate Tracking

Polar alignment is the cornerstone of an equatorial mount’s functionality. It allows the telescope to track celestial objects as they appear to move across the sky due to the Earth’s rotation. Without precise polar alignment, objects will drift out of the field of view, especially during long exposures.The RA axis of an equatorial mount must be parallel to the Earth’s axis of rotation, which points toward the North Celestial Pole (near Polaris in the Northern Hemisphere) or the South Celestial Pole (near Sigma Octantis in the Southern Hemisphere).

This alignment allows the mount to counteract Earth’s rotation by rotating around its RA axis at a constant rate. This is why it’s crucial for long-exposure astrophotography, where even slight tracking errors can ruin an image.

Performing Polar Alignment

Several methods exist for achieving polar alignment, each with varying levels of accuracy and complexity. The best method depends on your location, equipment, and observing goals.

Using a Polar Scope

A polar scope is a small telescope built into the RA axis of the mount. It allows you to visually align the mount with the celestial pole.

1. Locate the Polar Scope: Find the polar scope on your equatorial mount. It’s usually located within the RA axis.
2. Focus the Polar Scope: Before aligning, focus the polar scope. Point the telescope at a distant object during the day and focus the polar scope until the object appears sharp.

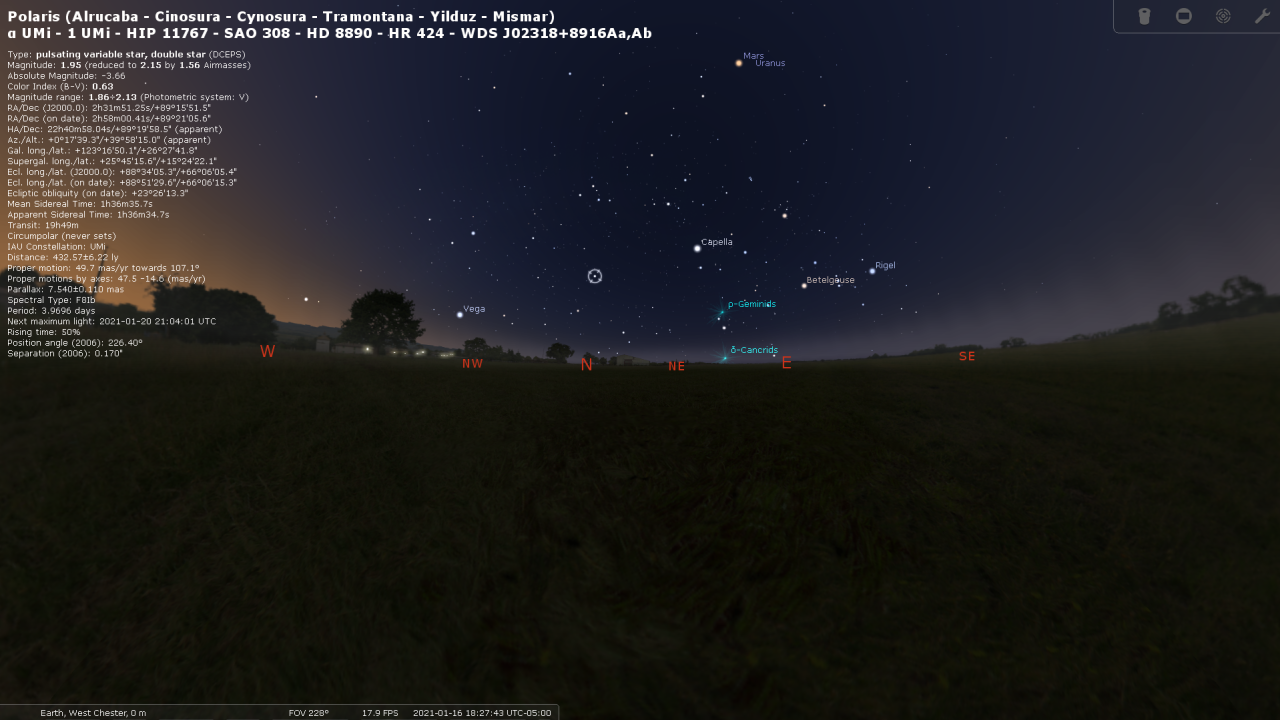

3. Find Polaris (Northern Hemisphere): If observing from the Northern Hemisphere, locate Polaris, the North Star. It’s very close to the North Celestial Pole. Use a star chart or planetarium software to help you find it.
4. Find Sigma Octantis (Southern Hemisphere): If observing from the Southern Hemisphere, Sigma Octantis is the star closest to the South Celestial Pole. Use a star chart or planetarium software to locate it. Sigma Octantis is much fainter than Polaris, so it can be more difficult to find.
5. Align the Polar Scope: Use the altitude and azimuth adjustment knobs on your mount to center Polaris (or Sigma Octantis) in the polar scope’s reticle. The reticle usually has markings that help you account for the current position of Polaris relative to the true celestial pole.
6. Fine-Tune: Some mounts have finer adjustment mechanisms to achieve greater precision. Continue adjusting until Polaris is perfectly aligned within the reticle markings.

Drift Alignment

Drift alignment is a more precise method that involves observing the drift of stars in your telescope’s field of view. It is particularly useful if you don’t have a polar scope or want to achieve very accurate alignment.

1. Set Up: Complete the initial setup of your equatorial mount, including leveling and balancing.
2. Choose a Star: Select a star near the celestial equator and as close as possible to the meridian (the imaginary line that runs from north to south through the zenith). Use a star chart or planetarium software to identify a suitable star.
3. Observe Drift in Declination: Center the star in your telescope’s field of view. Watch the star’s movement. If the star drifts north or south, your mount is not aligned in altitude. Adjust the altitude adjustment knob on your mount to correct the drift. If the star drifts south, increase the altitude.

   If the star drifts north, decrease the altitude.

4. Choose a Star (Near the Horizon): Select a star near the eastern or western horizon.
5. Observe Drift in Right Ascension: Center the star in your telescope’s field of view. Watch the star’s movement. If the star drifts east or west, your mount is not aligned in azimuth. Adjust the azimuth adjustment knobs on your mount to correct the drift. If the star drifts east, adjust the azimuth.

   If the star drifts west, adjust the azimuth.

6. Iterate: Repeat steps 3 and 5 until the star no longer drifts significantly in either direction. This may require several iterations.

Using GoTo Systems and Alignment Routines

Many modern equatorial mounts come equipped with GoTo systems and built-in alignment routines that can assist with polar alignment. These systems often use a combination of sensors, such as GPS and inclinometers, to determine your location and the position of the celestial pole.

1. Follow the Instructions: Consult your mount’s manual for specific instructions on how to use its alignment routine. The procedure will vary depending on the manufacturer and model.
2. Enter Your Location: The GoTo system will typically prompt you to enter your latitude and longitude or automatically determine your location using a GPS receiver.
3. Choose Alignment Stars: The system will then ask you to select one or more alignment stars. It will then slew the telescope to those stars.
4. Center the Stars: Using the hand controller, center the alignment stars in your telescope’s field of view.
5. Fine-Tune: The system will then use the positions of the alignment stars to calculate and refine the polar alignment.
6. Repeat (if necessary): Repeat the alignment process if the tracking is not satisfactory. Some systems may require you to repeat the process with more alignment stars for greater accuracy.

Using Setting Circles or GoTo Systems on an Equatorial Mount

Setting circles are graduated scales on the RA and declination axes of an equatorial mount that allow you to manually locate celestial objects. GoTo systems automate this process, but understanding setting circles can still be beneficial.

Using Setting Circles

1. Locate Setting Circles: Identify the RA and declination setting circles on your mount. The RA setting circle is usually marked in hours, minutes, and seconds, while the declination circle is marked in degrees.
2. Find Coordinates: Use a star chart or planetarium software to find the RA and declination coordinates of the object you want to observe.
3. Set the RA Circle: After polar alignment, point the telescope to a known star. Adjust the RA setting circle until it reads the RA coordinate of the known star. This step calibrates the RA circle to your current alignment.
4. Set the Declination Circle: Loosen the declination lock. Point the telescope at a known star. Rotate the telescope until the declination circle reads the declination coordinate of the known star. Tighten the declination lock.
5. Locate the Target: Rotate the telescope on both RA and declination axes to the coordinates of the object you wish to observe.
6. Fine-Tune: The setting circles provide an approximation. Fine-tune your telescope’s position by looking through the eyepiece and making small adjustments until the object is centered.

Using GoTo Systems

1. Power On and Initialize: Turn on your mount and follow the initialization procedure, which may include entering your location and performing a star alignment.
2. Select a Target: Use the hand controller to select the object you want to observe from the GoTo system’s database.
3. Slew to the Target: The GoTo system will automatically slew the telescope to the object.
4. Fine-Tune (if necessary): The GoTo system’s accuracy may vary. If the object is not perfectly centered in your eyepiece, use the hand controller’s directional buttons to center it.
5. Track the Object: Once the object is centered, the GoTo system will track it, compensating for the Earth’s rotation.

Alt-Azimuth vs. Equatorial

Choosing the right telescope mount is a crucial decision for any astronomer, affecting everything from ease of use to the types of observations you can make. Both Alt-Azimuth and Equatorial mounts have their strengths and weaknesses. Understanding these differences will help you select the mount that best suits your observing goals and experience level.

Ease of Use Comparison

Alt-Azimuth mounts generally offer a more straightforward and intuitive experience for beginners. Equatorial mounts, while capable, require more initial setup and understanding.

• Alt-Azimuth: These mounts move in altitude (up and down) and azimuth (left and right), mirroring the way we naturally perceive the sky. They are typically easier to set up, especially for visual observing, requiring no polar alignment. You simply point the telescope in the desired direction.
• Equatorial: Equatorial mounts, on the other hand, must be carefully aligned with the Earth’s rotational axis (polar alignment). This process involves adjusting the mount to point towards the North Celestial Pole (in the Northern Hemisphere) or the South Celestial Pole (in the Southern Hemisphere). Polar alignment can be time-consuming, especially for beginners.

Suitability for Visual Observing

For visual observing, both mount types can be used effectively, but the specific advantages of each depend on the type of objects you are observing and your personal preferences.

• Alt-Azimuth: Alt-Azimuth mounts are excellent for casual visual observing, especially when using a telescope with a simple GoTo system. They are quick to set up and easy to use for scanning the sky and observing a variety of objects. However, they may require occasional adjustments to track an object as it moves across the sky, particularly at higher magnifications.

• Equatorial: Equatorial mounts excel at tracking objects, making them ideal for prolonged visual observation of faint objects. Once polar aligned, the telescope can track an object’s movement across the sky with a single motor drive (right ascension). This minimizes the need for manual adjustments and keeps the object centered in the eyepiece.

Suitability for Astrophotography

Astrophotography places much higher demands on a telescope mount. The mount’s tracking accuracy and stability are critical for capturing sharp, detailed images.

• Alt-Azimuth: Alt-Azimuth mounts, without a field de-rotator, are generally unsuitable for long-exposure astrophotography. As the Earth rotates, the image will rotate in the field of view, resulting in elongated stars. While some Alt-Azimuth mounts offer GoTo functionality, the lack of accurate tracking makes them primarily useful for short-exposure astrophotography or for planetary imaging where the exposure times are very short.

• Equatorial: Equatorial mounts are essential for long-exposure astrophotography. The ability to track objects precisely, by counteracting the Earth’s rotation, allows for capturing sharp images of faint nebulae, galaxies, and other deep-sky objects. The accuracy of the tracking is dependent on the quality of the mount and the precision of the polar alignment.

Mount Feature Comparison Table

This table summarizes the key features, advantages, and disadvantages of Alt-Azimuth and Equatorial mounts.

Axis of Movement	Tracking Capability	Best Use	Advantages	Disadvantages
Alt-Azimuth (Altitude/Azimuth)	Requires manual adjustment or a GoTo system to track objects.	Casual visual observing, planetary imaging, short-exposure astrophotography.	Simple to set up, intuitive to use, often more affordable.	Requires adjustments to track objects, not suitable for long-exposure astrophotography without a field de-rotator.
Equatorial (Right Ascension/Declination)	Tracks objects with a single motor drive after polar alignment.	Visual observing of faint objects, long-exposure astrophotography.	Excellent tracking, ideal for astrophotography, minimizes the need for manual adjustments.	Requires polar alignment, more complex setup, generally more expensive.

Accessories and Considerations

Choosing the right telescope mount involves more than just understanding the basic types; it’s also about knowing the accessories that enhance your observing experience and the factors that influence your decision. This section will cover common accessories, the crucial role of counterweights, and essential considerations for selecting and maintaining your mount.

Common Accessories for Both Mount Types

Both Alt-Azimuth and Equatorial mounts benefit from a range of accessories that improve usability and observing quality.

• Finderscopes: These small telescopes, usually with a lower magnification and wider field of view than the main telescope, are essential for locating celestial objects. They are mounted on the main telescope tube and help you point the telescope accurately. Different types exist, including:
  • Optical Finderscopes: These are traditional finderscopes with crosshairs.
  • Red Dot Finderscopes: These project a red dot onto the sky, making it easy to align with a target.
• Eyepieces: Eyepieces, also known as oculars, are inserted into the focuser of the telescope and determine the magnification and field of view. A variety of eyepieces with different focal lengths are typically used to observe objects at various magnifications. A low-power eyepiece provides a wide field of view, ideal for finding objects, while higher-power eyepieces offer more detailed views.
• GoTo Systems: GoTo systems are computerized systems that allow you to automatically point the telescope to specific celestial objects. These systems typically include a database of thousands of objects and require initial alignment to the night sky. They are available for both Alt-Azimuth and Equatorial mounts, although their implementation differs. For example, on an Alt-Azimuth mount, the GoTo system directly controls the altitude and azimuth movements, while on an Equatorial mount, it must also account for the Earth’s rotation.

• Extension Tubes: These are used to increase the distance between the telescope tube and the eyepiece, allowing for focusing with certain telescopes or cameras.
• Dew Shields and Heaters: These accessories help prevent dew from forming on the telescope’s optics, especially during humid nights.

The Importance of Counterweights for Equatorial Mounts

Counterweights are a fundamental component of Equatorial mounts, playing a critical role in their functionality.Equatorial mounts rely on a counterweight system to balance the weight of the telescope and any attached accessories. This balance is crucial for smooth tracking of celestial objects. The counterweight is attached to a shaft that extends from the declination axis. The telescope itself is mounted on the opposite side of this axis.

The primary purpose of counterweights is to counteract the weight of the telescope, ensuring that the mount is balanced. This balance allows the mount to track celestial objects smoothly as the Earth rotates. Without proper balancing, the motors in the mount would have to work much harder, leading to inaccurate tracking and potential damage to the mount.

The weight of the counterweight must be adjusted to match the weight of the telescope and any attached accessories. This adjustment is typically done by sliding the counterweight along the counterweight shaft.

Factors to Consider When Choosing a Mount

Selecting the right telescope mount requires careful consideration of several factors.

• Telescope Size and Weight: The primary factor is the size and weight of the telescope. The mount must be able to support the telescope’s weight safely and stably. Heavier telescopes require more robust and expensive mounts.
• Intended Use: Consider how you plan to use the telescope.
  • Visual Observation: For visual observation, a stable mount that allows for smooth tracking is essential.
  • Astrophotography: Astrophotography demands a very precise and stable mount capable of accurate tracking over extended periods. Equatorial mounts are generally preferred for astrophotography due to their ability to compensate for the Earth’s rotation.
• Portability: If you plan to transport the telescope, consider the mount’s weight and size. Lighter and more compact mounts are easier to move and set up.
• Budget: Telescope mounts range in price from a few hundred dollars to several thousand dollars. Determine your budget and choose a mount that meets your needs within that range.
• Features: Consider the features you need, such as GoTo systems, motorized tracking, and the ability to add accessories.

Tips for Maintaining and Caring for Telescope Mounts

Proper maintenance is crucial for extending the life and ensuring the performance of your telescope mount.

• Keep it Clean: Regularly clean your mount to remove dust, dirt, and debris. Use a soft cloth or brush to wipe down the surfaces. Avoid using harsh chemicals or solvents.
• Lubricate Moving Parts: Lubricate moving parts, such as gears and bearings, with appropriate lubricants. Follow the manufacturer’s instructions for lubrication. Over-lubrication can attract dust and debris.
• Store Properly: Store your mount in a dry, clean place when not in use. Protect it from extreme temperatures and humidity.
• Check for Loose Screws and Bolts: Regularly inspect your mount for loose screws and bolts. Tighten them as needed.
• Protect from the Elements: If you observe outdoors, protect your mount from rain, snow, and direct sunlight. Use a cover or tarp if necessary.
• Handle with Care: Avoid dropping or bumping your mount. Handle it with care to prevent damage.

Advanced Techniques and Applications

This section delves into more sophisticated techniques for maximizing the performance of your telescope mounts, moving beyond basic usage. We’ll explore ways to refine tracking accuracy, improve polar alignment, and leverage the power of GoTo systems, alongside a brief look at how these mounts are utilized in professional astronomy. These techniques are especially valuable for astrophotography and observing faint objects.

Improving Alt-Azimuth Tracking Accuracy

Alt-Azimuth mounts, while simpler to set up, are inherently limited by their inability to perfectly track the apparent motion of celestial objects. However, several techniques can significantly improve their tracking accuracy, making them suitable for short-exposure astrophotography and more enjoyable visual observing.* Using a Barlow Lens: A Barlow lens increases the effective focal length of your telescope. This makes the apparent movement of celestial objects more pronounced, making it easier to correct for drift.

This is particularly useful when observing at higher magnifications.* Fine-tuning the Altitude and Azimuth Adjustments: Many Alt-Azimuth mounts have fine adjustment knobs for altitude and azimuth. Regularly use these knobs to correct for drift, especially at high magnifications. Observing a bright star or planet and making small adjustments will help keep the object centered in the eyepiece.* Utilizing a Motor Drive: Attaching a motor drive to your Alt-Azimuth mount can greatly improve tracking.

These motors automatically compensate for the Earth’s rotation, keeping objects in your field of view. These are especially useful for longer observations or short-exposure astrophotography.* Implementing a Tracking Software: Software like SharpCap or PHD2 (Push Here, Dummy) can analyze the movement of a guide star and send corrections to the mount via a guiding camera. This significantly improves tracking accuracy.

This approach is commonly used for astrophotography.* Considering the Type of Alt-Azimuth Mount: Different types of Alt-Azimuth mounts have varying levels of tracking accuracy. A Dobsonian telescope, for example, generally requires manual tracking, while a computerized Alt-Azimuth mount with GoTo capabilities and tracking motors offers a much better tracking performance.

Advanced Polar Alignment Techniques

Precise polar alignment is crucial for equatorial mounts, especially for astrophotography. While basic polar alignment methods are sufficient for visual observing, achieving high accuracy requires more advanced techniques. These methods are designed to minimize errors and improve tracking performance.* Using a Polar Alignment Scope: A polar alignment scope, built into the mount’s polar axis, provides a direct view of the celestial pole.

Aligning the mount’s polar axis with the reticle of the polar scope is more accurate than using a simple finder scope. Many polar scopes have illuminated reticles that include the positions of Polaris and other reference stars, which further aids in accurate alignment.* Drift Alignment: This technique involves observing the drift of stars near the celestial equator and adjusting the mount’s altitude and azimuth to minimize this drift.

It’s a highly accurate method, but it requires patience and careful observation. The process typically involves: 1. Choosing a star near the celestial equator and east or west of the meridian. 2. Observing the star’s drift in the eyepiece.

If the star drifts north, adjust the mount’s azimuth eastward; if it drifts south, adjust the azimuth westward. 3. Repeating the process with a star near the celestial equator and north or south of the meridian. If the star drifts north, adjust the mount’s altitude upward; if it drifts south, adjust the altitude downward. 4.

Iterating the process until the drift is minimized.* Using Polar Alignment Software: Software such as Polar Align Pro, or the built-in polar alignment features of some GoTo systems, can guide you through the polar alignment process. These programs typically use the telescope’s GoTo system to find and center stars, then analyze their positions to calculate and display alignment adjustments.

They may also use plate solving, where the software analyzes an image taken by a camera attached to the telescope to determine its precise orientation and position.* Plate Solving: This is an advanced technique that involves taking an image of a star field and comparing it to a database of known star positions. This allows the software to determine the precise pointing coordinates of the telescope and calculate any necessary adjustments for polar alignment.

Plate solving can be extremely accurate and is often used in conjunction with other alignment methods.

Using a GoTo System on an Equatorial Mount

GoTo systems greatly simplify the process of finding and tracking celestial objects. They allow you to automatically point your telescope to specific coordinates or select objects from a database. Here’s a step-by-step guide:* Initial Setup:

Set up the equatorial mount and level it.

Perform a basic polar alignment. This doesn’t need to be perfect at this stage.

Connect the GoTo system to the mount (if necessary).

Power up the GoTo system.

* Entering Location Data: Input your observing location (latitude, longitude, and time zone) into the GoTo system. This is critical for accurate object positioning.

Set the current date and time.

Select the time format (e.g., local time, UTC).

* Two- or Three-Star Alignment:

The GoTo system will prompt you to align the telescope using two or three bright stars.

Choose the stars suggested by the system or select your own.

Use the hand controller to center each star in the telescope’s eyepiece.

The system will calculate and apply corrections based on the star positions.

* Object Selection:

Use the hand controller to select an object from the database (e.g., Messier objects, NGC objects, planets, or stars).

The GoTo system will automatically slew the telescope to the selected object.

* Fine-tuning and Tracking:

Once the telescope has slewed to the object, check if it’s centered in the eyepiece.

If needed, make minor adjustments using the hand controller’s arrow keys.

The GoTo system will now automatically track the object, compensating for the Earth’s rotation.

* Additional Features:

Many GoTo systems offer features such as guided tours, which automatically select and point to interesting objects based on your location and the time of year.

Some systems can also provide information about the selected object, such as its name, type, and distance.

The Use of Mounts in Professional Astronomy

Telescope mounts play a vital role in professional astronomy, serving as the backbone of large observatories and sophisticated research projects. The design and engineering of these mounts are critical to the success of astronomical observations.* Equatorial Mounts in Large Observatories: Many large professional telescopes, especially those built before the advent of advanced computer-controlled Alt-Azimuth designs, utilize equatorial mounts. These mounts allow the telescope to track celestial objects with high precision.

An example of a telescope that uses this type of mount is the 2.7-meter telescope at McDonald Observatory.* Alt-Azimuth Mounts in Modern Observatories: Modern large telescopes, such as the Very Large Telescope (VLT) in Chile and the Gran Telescopio Canarias (GTC) in the Canary Islands, primarily use Alt-Azimuth mounts. These mounts are generally more mechanically stable and can support heavier loads.

Their design allows for larger and more complex telescopes. The control systems of these telescopes are incredibly sophisticated, using computer algorithms to compensate for atmospheric distortion and tracking errors.* Mounts for Specialized Telescopes: Some telescopes, such as those used for radio astronomy or solar observation, may use specialized mount designs tailored to their specific observing needs. For example, radio telescopes often require very precise pointing and tracking capabilities to detect faint radio signals from distant objects.

Solar telescopes may use mounts that allow them to track the sun’s movement across the sky throughout the day.* Adaptive Optics: Many professional telescopes use adaptive optics systems to correct for atmospheric turbulence, or “seeing.” These systems use sensors to measure the distortions caused by the atmosphere and a deformable mirror to correct them in real-time. This technology, combined with precise mount control, enables astronomers to achieve extremely sharp images.* Research Applications: Professional astronomers use telescope mounts for a wide range of research applications, including:

Exoplanet detection

Detecting planets orbiting other stars often requires extremely precise measurements of the star’s position.

Cosmology

Studying the distribution of galaxies and the expansion of the universe requires long-exposure observations and precise tracking.

Astro-imaging

Capturing detailed images of nebulae, galaxies, and other celestial objects.

Spectroscopy

Analyzing the light from celestial objects to determine their composition, temperature, and velocity.

Closing Notes

From the straightforward simplicity of Alt-Azimuth mounts to the precision of Equatorial mounts, understanding these tools is key to unlocking the wonders of the night sky. This guide has equipped you with the knowledge to navigate the world of telescope mounts, from setup to advanced techniques. Whether you’re a visual observer or an aspiring astrophotographer, the right mount will elevate your stargazing experience.

So, grab your telescope, choose your mount, and prepare to embark on an incredible journey through the cosmos!
