Embarking on your astronomical journey begins with understanding your telescope, and a crucial component is the eyepiece. How to Choose the Right Telescope Eyepiece demystifies this essential part, guiding you through the selection process. Eyepieces are the final piece of the puzzle, magnifying the faint light gathered by your telescope to reveal the wonders of the cosmos. This guide will provide you with the knowledge to make informed decisions and enhance your viewing experience.
We’ll delve into magnification, field of view, and eyepiece designs. You’ll learn how to calculate magnification, understand the impact of eye relief, and compare different eyepiece types. From planets to nebulae, we’ll cover ideal magnifications for various celestial objects, and how to maximize your viewing pleasure.
Understanding Telescope Eyepieces
Eyepieces are a critical component of any telescope, playing a crucial role in how we perceive the cosmos. They are the final piece in the optical puzzle, working in concert with the telescope’s objective lens or mirror to bring distant celestial objects into focus and magnify their apparent size. Choosing the right eyepiece is key to maximizing your viewing experience and unlocking the full potential of your telescope.
The Fundamental Role of an Eyepiece
The eyepiece’s primary function is to magnify the image formed by the telescope’s objective lens or mirror. This initial image, created at the telescope’s focal point, is often small and difficult to see directly. The eyepiece acts like a magnifying glass, taking this faint image and enlarging it for the observer’s eye. It also corrects for aberrations introduced by the objective, improving image quality.
Without an eyepiece, the light gathered by the telescope would remain unfocused, and the wonders of the night sky would remain out of reach.
Magnification Calculation
Magnification is a crucial concept when selecting eyepieces. It determines how much larger an object will appear through the telescope.To calculate magnification, you need two pieces of information: the focal length of the telescope and the focal length of the eyepiece. The formula is straightforward:
Magnification = Telescope Focal Length / Eyepiece Focal Length
For example, if your telescope has a focal length of 1000mm and you are using a 25mm eyepiece:Magnification = 1000mm / 25mm = 40xThis means the object will appear 40 times larger than it would with the naked eye. Using a 10mm eyepiece in the same telescope would result in a magnification of 100x. Remember that higher magnification isn’t always better; it can reduce image brightness and sharpness, especially in less-than-ideal observing conditions.
Field of View (FOV) Significance
The field of view (FOV) describes the area of the sky you can see through your telescope. It is another critical consideration when choosing an eyepiece. A wider FOV allows you to see more of the surrounding sky, making it easier to locate objects and appreciate their context.The FOV is typically expressed in degrees or arcminutes. The apparent field of view (AFOV) of the eyepiece is usually specified by the manufacturer.
To calculate the true field of view (TFOV), you can use this formula:
TFOV = AFOV / Magnification
For example, if you are using an eyepiece with a 60-degree AFOV and your telescope provides 40x magnification, the TFOV is:TFOV = 60 degrees / 40 = 1.5 degreesThis means you can see a circular area of the sky that is 1.5 degrees wide. The Moon, for comparison, is about 0.5 degrees wide. The wider the true field of view, the more sky you can see at once.
Wide field eyepieces are often preferred for observing large objects like nebulae and galaxies.
Eyepiece Parts and Functions
An eyepiece is a complex optical instrument with several key components working together. Understanding these parts can help you choose the right eyepiece and understand how it functions.
- Eye Lens: This is the lens closest to your eye. It magnifies the image formed by the telescope and is designed to correct for aberrations. The eye lens’s quality significantly impacts image sharpness and clarity.
- Field Lens: Located at the bottom of the eyepiece, closest to the telescope’s objective, the field lens helps to gather light and define the field of view. It contributes to the overall image sharpness and helps correct for distortions.
- Lens Elements: Most eyepieces are not simple single lenses, but rather a combination of multiple lens elements, made of different types of glass. These elements work together to correct for various optical aberrations, such as chromatic aberration and spherical aberration, and to improve the overall image quality.
- Barrel: The barrel is the cylindrical part of the eyepiece that inserts into the telescope’s focuser. It is usually sized to fit standard focuser sizes, such as 1.25 inches or 2 inches. The barrel also provides a light-tight seal to prevent stray light from entering the eyepiece and reducing image contrast.
- Focusing Ring (sometimes): Some eyepieces have a focusing ring, which allows for fine-tuning the focus. This can be particularly helpful for users with astigmatism or other vision problems. Many eyepieces rely on the telescope’s focuser for focus adjustment.
- Eye Relief: Eye relief is the distance between the eye lens and your eye where you can see the entire field of view. It is an important factor for comfort, especially for people who wear glasses. Longer eye relief is generally better for glasses wearers.
- Coatings: Eyepieces have coatings on their lenses to reduce light reflection and improve light transmission. These coatings help to increase image brightness and contrast. The quality and type of coatings can significantly affect the eyepiece’s performance.
Factors to Consider When Choosing an Eyepiece
Choosing the right telescope eyepiece is a crucial step in maximizing your viewing experience. Several factors influence your choice, impacting the magnification, comfort, and overall quality of the images you see. Understanding these factors will help you select eyepieces that best suit your telescope and observing preferences.
Focal Length and Magnification
The focal length of an eyepiece is a primary determinant of magnification. It directly affects how much the image appears enlarged.The relationship between focal length, the telescope’s focal length, and magnification is defined by the following formula:
Magnification = Telescope Focal Length / Eyepiece Focal Length
For instance, if your telescope has a focal length of 1000mm and you use a 25mm eyepiece, the magnification would be 1000mm / 25mm = 40x. A shorter focal length eyepiece, such as 10mm, would provide a higher magnification (100x in this example).* Shorter Focal Length Eyepieces: Offer higher magnification, ideal for observing details on planets, the Moon, and double stars.
However, they also produce dimmer images and can be more sensitive to atmospheric seeing conditions.
Longer Focal Length Eyepieces
Provide lower magnification, resulting in brighter images and a wider field of view. These are better suited for observing extended objects like nebulae and galaxies. They are also less affected by atmospheric turbulence.The “sweet spot” for magnification is often considered to be about 50x to 60x per inch of telescope aperture (diameter of the primary mirror or lens). Going beyond this limit can lead to blurry and less detailed images, especially under less-than-ideal seeing conditions.
Eye Relief and Viewing Comfort
Eye relief is the distance between the eyepiece lens and your eye where you can see the full field of view. It is a critical factor for comfortable viewing, especially for those who wear eyeglasses.* Short Eye Relief: Can make viewing uncomfortable, requiring you to position your eye very close to the eyepiece lens. This can be difficult for eyeglass wearers and may lead to eye strain.
Long Eye Relief
Provides more space between your eye and the lens, making it easier to view the entire field of view, even with eyeglasses. This is generally preferred for comfort and is often a must-have for those who use glasses.The ideal eye relief depends on your individual needs. Generally, eyeglass wearers should prioritize eyepieces with longer eye relief to accommodate their glasses.

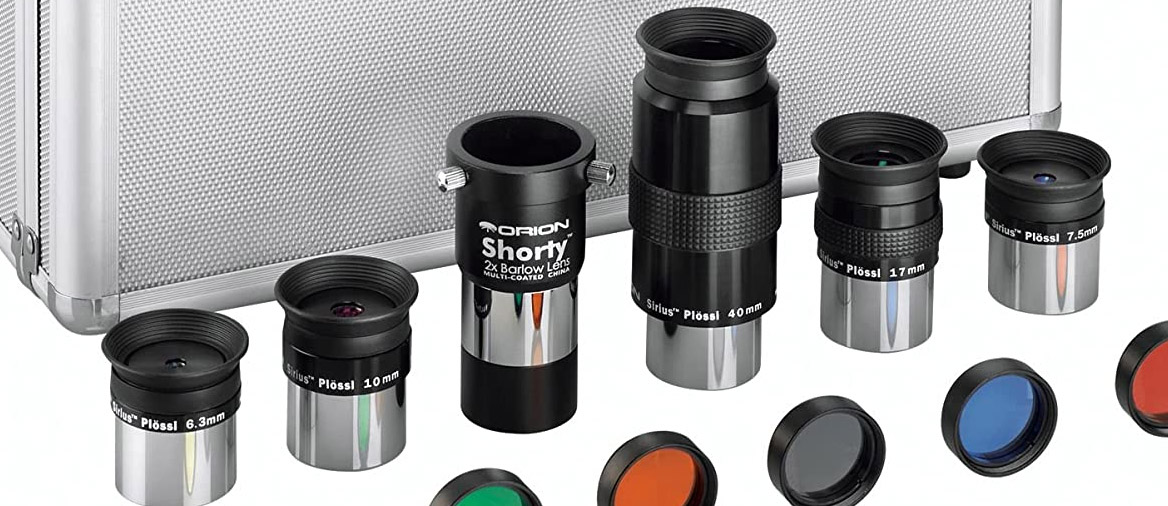

Eyepiece Design Comparison
Different eyepiece designs offer varying performance characteristics. The choice of eyepiece design significantly impacts the viewing experience, including field of view, eye relief, and image quality.Here’s a comparison of some common eyepiece designs:* Plössl: A popular and versatile design known for good image quality and reasonable eye relief. They offer a moderate field of view, making them suitable for various astronomical objects.
They are generally a good balance of performance and price.
Orthoscopic
Renowned for their high contrast and sharp images, especially at the center of the field of view. They typically have a narrower field of view and shorter eye relief compared to Plössls.
Wide-Field
These eyepieces offer a significantly wider field of view, providing a more immersive observing experience. They can be particularly useful for observing extended objects like nebulae and galaxies. Eye relief can vary, but is often good.
Ultra Wide-Field
Offer an even wider field of view than wide-field eyepieces, providing the most immersive viewing experience. They often have complex optical designs, which can lead to higher prices.The following table provides a comparison of the specifications of these different eyepiece types:
| Eyepiece Type | Focal Length Range (mm) | Field of View (degrees) | Eye Relief (mm) | Typical Price Range (USD) |
|---|---|---|---|---|
| Plössl | 6-40 | 40-52 | 8-20 | $30 – $100 |
| Orthoscopic | 4-25 | 40-45 | 5-10 | $50 – $150 |
| Wide-Field | 8-30 | 60-82 | 12-20 | $75 – $300 |
| Ultra Wide-Field | 7-31 | 80-100 | 10-25 | $150 – $500+ |
Magnification and Telescope Specifications
Choosing the right eyepiece is crucial for maximizing your telescope’s potential and enjoying stunning views of the night sky. Understanding how magnification interacts with your telescope’s specifications is key to achieving the best possible images. This section will guide you through determining appropriate magnification ranges, understanding exit pupil, and selecting magnifications for various celestial objects.
Determining Appropriate Magnification Range

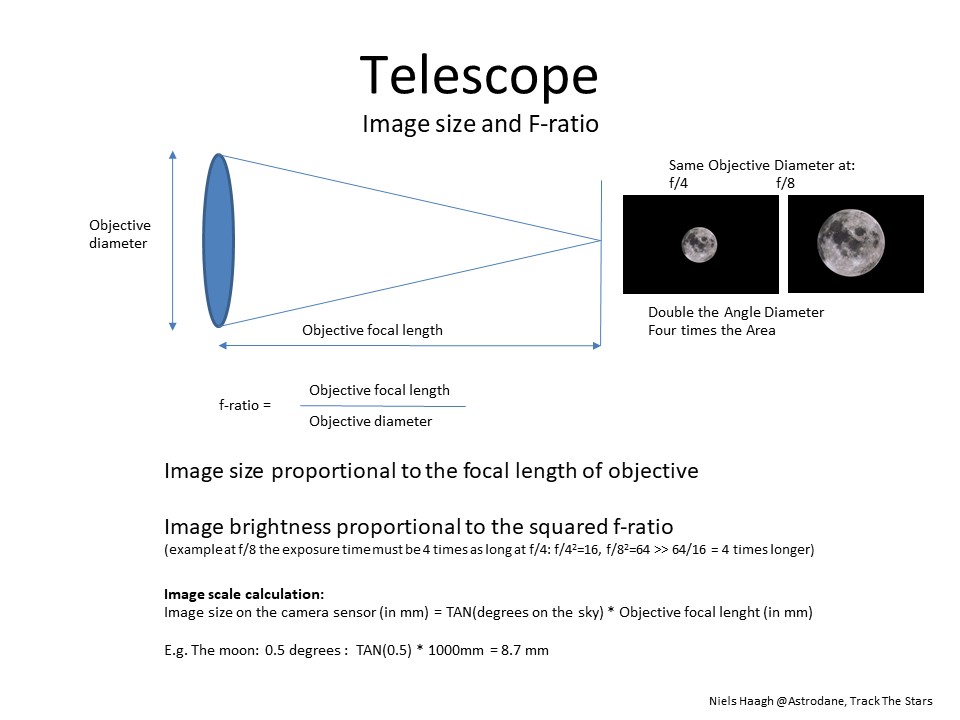

The magnification a telescope provides is directly determined by the focal length of the telescope and the focal length of the eyepiece. The formula for calculating magnification is straightforward:
Magnification = Telescope Focal Length / Eyepiece Focal Length
For example, if your telescope has a focal length of 1000mm and you’re using a 25mm eyepiece, the magnification is 1000mm / 25mm = 40x. To determine the appropriate magnification range, you need to consider both the minimum and maximum useful magnification of your telescope.The minimum useful magnification is often determined by the telescope’s exit pupil, which is the diameter of the light beam exiting the eyepiece.
The maximum useful magnification is typically limited by the telescope’s aperture (the diameter of the primary lens or mirror).
Exit Pupil and Image Brightness
The exit pupil is a crucial factor in determining image brightness. It’s the diameter of the beam of light that exits the eyepiece and enters your eye. The exit pupil is calculated as follows:
Exit Pupil = Eyepiece Focal Length / Telescope Focal Ratio
Your eye’s pupil dilates in darkness to allow in more light. Generally, a fully dark-adapted eye can have a pupil diameter of around 7mm. If the exit pupil of your telescope/eyepiece combination is larger than your eye’s pupil, some light is wasted, and the image won’t appear brighter. Conversely, if the exit pupil is too small, the image will appear dim.
A good rule of thumb is to aim for an exit pupil between 0.5mm and 7mm, depending on the object you’re observing and the observing conditions.
Ideal Magnification Levels for Observing Different Celestial Objects
Different celestial objects benefit from different levels of magnification. Here are some general guidelines:* Planets: Planets like Jupiter, Saturn, and Mars generally benefit from higher magnifications, allowing you to see details like cloud bands, ring systems, and polar ice caps. Magnifications between 150x and 300x are often ideal, but seeing conditions play a significant role. Turbulent air (poor seeing) will limit how much magnification you can use effectively.* Nebulae: Nebulae, like the Orion Nebula or the Lagoon Nebula, are typically large and diffuse.
Moderate magnifications, typically in the range of 50x to 100x, often provide the best views, allowing you to see the overall structure and glow of the nebula. Lower magnifications can sometimes be beneficial for very large nebulae.* Galaxies: Galaxies, like the Andromeda Galaxy or the Whirlpool Galaxy, are often faint and extended. Lower magnifications, typically in the range of 30x to 75x, are often preferred to gather as much light as possible and reveal their faint details.
Higher magnifications can sometimes be used to observe specific features, but the image may become dimmer.
Maximum Useful Magnification Based on Aperture
The maximum useful magnification for a telescope is generally considered to be about 50x to 60x per inch of aperture (or about 2x to 2.4x per millimeter of aperture). This is a guideline, and the actual useful magnification will depend on factors like the quality of the optics, atmospheric conditions, and the observer’s eyesight.Here’s a table providing the maximum useful magnification for various telescope aperture sizes:
| Aperture (inches) | Aperture (mm) | Maximum Useful Magnification (approximate) |
|---|---|---|
| 2.8″ | 70mm | 140x |
| 4″ | 100mm | 200x |
| 5″ | 127mm | 250x |
| 6″ | 150mm | 300x |
| 8″ | 200mm | 400x |
| 10″ | 250mm | 500x |
| 12″ | 300mm | 600x |
This table is a general guide. Excellent optics and stable atmospheric conditions can sometimes allow for slightly higher magnifications, while less-than-ideal conditions may require you to use lower magnifications for the best views. Remember to experiment and find the magnifications that work best for your telescope and observing environment.
Eyepiece Field of View (FOV) and Its Impact
Understanding the field of view (FOV) is crucial for maximizing your observing experience. It determines how much of the sky you can see at once through your telescope. A wider FOV allows you to view larger objects in their entirety and provides a more immersive experience. This section delves into the relationship between apparent and true field of view, the advantages of wide-field eyepieces, and how to estimate the FOV in practice.

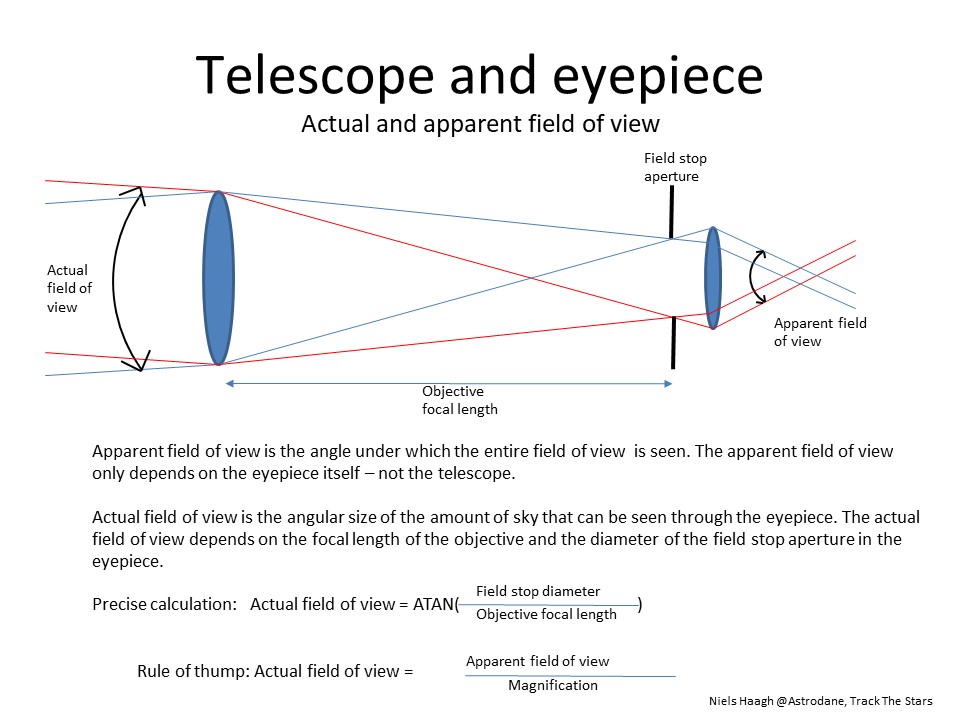

Apparent Field of View (AFOV) and True Field of View (TFOV)
The relationship between apparent field of view (AFOV) and true field of view (TFOV) is fundamental to understanding how eyepieces work. AFOV is the angle, measured in degrees, of the image you see
- through* the eyepiece. TFOV, on the other hand, is the actual angular size of the portion of the sky you are viewing
- with* the telescope.
The two are related through the focal length of your telescope and the eyepiece, using the following formula:
TFOV = AFOV / Magnification
Where:
- TFOV is the True Field of View, typically expressed in degrees or arcminutes.
- AFOV is the Apparent Field of View, a characteristic of the eyepiece itself (usually printed on the eyepiece barrel).
- Magnification is the power of your telescope with that particular eyepiece.
To calculate magnification:
Magnification = Telescope Focal Length / Eyepiece Focal Length
For example, if you have a telescope with a focal length of 1000mm and an eyepiece with a focal length of 20mm and an AFOV of 60 degrees, the calculations would be:
- Magnification = 1000mm / 20mm = 50x
- TFOV = 60 degrees / 50 = 1.2 degrees
This means you’re seeing a 1.2-degree circle of the sky.
Benefits of Wide-Field Eyepieces
Wide-field eyepieces offer several advantages, particularly for observing extended objects. They provide a more immersive view and are better suited for objects that don’t fit easily within the narrower FOV of standard eyepieces.Here’s a breakdown of the key benefits:
- Enhanced Viewing of Nebulae and Star Clusters: Wide-field eyepieces allow you to see entire nebulae like the Orion Nebula (M42) or large open star clusters like the Pleiades (M45) in a single, expansive view. This context enhances the appreciation of their beauty and structure.
- Easier Object Location: With a wider FOV, it’s easier to find and center objects, as the wider view encompasses more of the surrounding sky. This is especially helpful when using star charts or GoTo systems.
- More Relaxed Viewing: A wider field of view provides a more comfortable and less strained viewing experience. You don’t have to constantly move your eye to take in the entire view.
- Increased Appreciation of the Night Sky: Wide-field views offer a greater sense of the vastness of space, allowing you to see more stars and appreciate the relationships between celestial objects.
Estimating the TFOV of an Eyepiece
Estimating the true field of view (TFOV) in the field is often necessary. This can be done using several methods. One practical method is to use the position of known stars to determine the TFOV.Here are some tips:
- Use Star Charts: Identify two stars in the field of view that are a known distance apart. Consult a star chart or online astronomy resource to find the angular separation (in degrees or arcminutes) between these stars.
- Measure the Separation: Observe the stars through your telescope with the eyepiece you want to measure. Estimate the distance between the stars in the field of view.
- Calculate the TFOV: Compare the actual angular separation of the stars (from the star chart) to the estimated separation in your eyepiece. If the stars are separated by 1 degree and fit exactly edge-to-edge within the view, then the TFOV is 1 degree. If they take up half the field of view, then the TFOV is 2 degrees, and so on.
- Use the Drift Method: Observe a star near the celestial equator and time how long it takes to drift across the field of view. One degree of the sky takes about 4 minutes to pass through the field of view at the celestial equator.
Visual Representation of FOV Enhancement
Consider this visual analogy to understand the impact of a wider FOV:
Imagine you are standing in a room with a small window. Through this window, you can see only a small portion of the outside world. This is like viewing with a narrow-field eyepiece. You can see a specific object, but little of its surroundings.
Now, imagine that the small window is replaced with a much larger window. You can now see the entire landscape, including the object of interest and the surrounding environment. This is like viewing with a wide-field eyepiece. You gain a much greater appreciation of the context and beauty of the scene.
End of Discussion
Choosing the right eyepiece is paramount to unlocking the full potential of your telescope. By understanding magnification, field of view, and the nuances of different eyepiece designs, you’ll be well-equipped to explore the night sky. Remember to consider your telescope’s specifications and your personal viewing preferences. With the right eyepiece, every celestial observation will be a more rewarding and enriching experience.
Happy stargazing!
