How To Collimate A Reflector Telescope

Embark on a journey into the heart of astronomical observation with “How to Collimate a Reflector Telescope,” a guide designed to unlock the full potential of your reflector telescope. Proper collimation, the alignment of your telescope’s mirrors, is the cornerstone of sharp, detailed views of the cosmos. Without it, your telescope’s performance suffers, and those stunning nebulae and galaxies remain blurry and indistinct.

This guide breaks down the complex process of collimation into manageable steps, ensuring that both novice and experienced stargazers can achieve optimal optical performance. We’ll explore the essential components, the tools of the trade, and the techniques needed to align your telescope’s mirrors with precision. From understanding the role of the primary and secondary mirrors to mastering the use of collimation caps, laser collimators, and Cheshire eyepieces, you’ll gain the knowledge and confidence to keep your telescope performing at its best.

Table of Contents

Introduction to Collimation

Collimation is the process of aligning the optical components of a reflecting telescope to ensure they work together to produce a sharp, clear image. This alignment is crucial for the telescope to perform at its best, allowing you to see faint celestial objects and enjoy detailed views of planets and the Moon. Without proper collimation, your telescope’s performance will be significantly degraded.

The Fundamental Concept of Collimation

Collimation essentially ensures that the light reflected by the primary mirror is correctly focused by the secondary mirror and then directed to the eyepiece. This alignment involves adjusting the angles and positions of the mirrors to create a single, unified focal point. Think of it like a chain reaction: the primary mirror reflects the light to the secondary mirror, which then reflects it to your eye.

Each link in this chain must be perfectly aligned for the light to travel correctly and form a clear image.

Brief History of Reflector Telescopes and the Importance of Proper Collimation

Reflector telescopes, which use mirrors instead of lenses to gather and focus light, have a rich history. Sir Isaac Newton invented the reflecting telescope in 1668, as a solution to chromatic aberration, a problem inherent in refracting telescopes (those using lenses). Newton’s design used a concave primary mirror to collect light and a flat, diagonal secondary mirror to reflect the light to the side, where an eyepiece could be placed.

The design quickly gained popularity due to its relative simplicity and ability to achieve larger apertures (light-gathering ability) than refractors of the time. However, to realize the full potential of these telescopes, careful alignment of the mirrors, or collimation, became essential. Early telescope makers, and astronomers, quickly realized that even slight misalignments could severely impact image quality. Without proper collimation, the theoretical resolving power and light-gathering capability of a reflector telescope cannot be achieved.

The larger the telescope’s aperture, the more critical collimation becomes.

Consequences of an Improperly Collimated Reflector Telescope

An improperly collimated reflector telescope can exhibit a variety of undesirable effects, which will significantly detract from your viewing experience.

Degraded Image Quality: The most noticeable consequence is a blurry or distorted image. Stars may appear elongated or misshapen, and details on planets and the Moon will be difficult to discern. The image will lack the sharpness and contrast that a properly collimated telescope provides.
Reduced Contrast: An improperly collimated telescope can suffer from reduced contrast. This means that faint objects, such as galaxies and nebulae, will be harder to see against the background sky. The subtle differences in brightness that reveal the details of celestial objects will be lost.
Coma: Coma is an optical aberration that makes stars appear comet-shaped, especially towards the edge of the field of view. While some coma is inherent in reflector telescopes, improper collimation can exacerbate this effect, making the images even more distorted.
Loss of Resolution: Resolution refers to the ability of a telescope to distinguish fine details. Improper collimation reduces the telescope’s resolving power, meaning you won’t be able to see as much detail in celestial objects. For example, you might struggle to resolve a double star or see the bands on Jupiter.
Difficulty in Focusing: A telescope that is out of collimation may be difficult or impossible to focus properly. The image may never snap into sharp focus, even with careful adjustments of the focuser. This can be very frustrating for the observer.

Understanding Telescope Components Affecting Collimation

To successfully collimate a reflector telescope, it’s essential to understand the key components and how their alignment impacts image quality. Proper collimation ensures that light is gathered and focused correctly, producing sharp, clear views of celestial objects. Let’s delve into the critical parts of your telescope that you’ll be adjusting.

Primary Mirror

The primary mirror is the heart of a reflector telescope. It’s the large, curved mirror at the bottom of the telescope tube.The primary mirror’s role is to gather the faint light from distant objects and reflect it back towards the front of the telescope. This curved surface is usually parabolic, designed to focus incoming parallel light rays to a single point, the focal point.

A well-aligned primary mirror is crucial for achieving sharp, focused images. If the primary mirror is misaligned, the light rays will not converge at the correct focal point, resulting in blurry or distorted images. This can manifest as a general lack of sharpness across the field of view or, in extreme cases, significant aberrations.

Secondary Mirror

The secondary mirror is a smaller mirror positioned near the front of the telescope tube, usually at a 45-degree angle to the incoming light path (for Newtonian telescopes) or a convex shape (for Cassegrain telescopes).The secondary mirror’s purpose is to redirect the light reflected by the primary mirror towards the focuser, where the eyepiece is inserted. In a Newtonian telescope, this secondary mirror is typically flat and angled to reflect the light to the side of the tube.

In a Cassegrain telescope, the secondary mirror is curved and reflects the light back through a hole in the primary mirror.Misalignment of the secondary mirror can lead to several image quality issues. If the secondary mirror is not properly centered in the light path, it can cause vignetting (a darkening of the image towards the edges) and off-axis aberrations. Furthermore, if the secondary mirror is tilted, it can introduce astigmatism, making stars appear elongated instead of round.

Focuser

The focuser is the mechanism that holds the eyepiece and allows you to adjust the focus of the telescope. It’s typically located on the side (Newtonian) or the rear (Cassegrain) of the telescope tube.The focuser’s role is to hold the eyepiece and allow the user to fine-tune the focus. By moving the eyepiece closer to or farther away from the secondary mirror (or the focal point), the focuser allows the user to bring the image into sharp focus.Misalignment of the focuser itself isn’t a primary collimation concern, but its correct positioning relative to the secondary mirror and primary mirror is crucial.

If the focuser is not perpendicular to the light path, or if the eyepiece isn’t correctly aligned, it can make achieving sharp focus difficult, and can introduce other optical distortions. The focuser must be precisely aligned with the other components to ensure that the light rays converge at the correct point for optimal image quality.

Tools Needed for Collimation

How To Collimate A Reflector Telescope – Mad Scientist Guy

Accurate collimation is impossible without the right tools. The choice of tool significantly impacts the ease and precision of the collimation process. This section details the various tools available, their advantages, disadvantages, and how to choose the right one for your needs and experience level.

Collimation Tools

Several tools can be used for collimating a reflector telescope. Each tool offers a different approach, impacting both the collimation process and the resulting accuracy.

Collimation Cap: This is the simplest and often the most affordable tool. It’s a small cap that fits into the focuser, with a small hole in the center.
Laser Collimator: A laser collimator emits a laser beam down the telescope tube. The beam reflects off the mirrors, making it easy to see if they’re aligned.
Cheshire Eyepiece: The Cheshire eyepiece is a more sophisticated tool than the collimation cap. It uses a sighting tube and a reflective surface to provide a more precise view of the mirror alignment.

Tool Comparison

Choosing the right tool depends on your budget, experience, and the desired level of accuracy. The following table compares the tools mentioned above, highlighting their pros and cons.

Tool	Pros	Cons
Collimation Cap	Inexpensive and readily available. Simple to use. Good for initial collimation.	Less precise than other methods. Can be difficult to use in bright conditions. Requires some experience to interpret the view.
Laser Collimator	Easy to use, providing immediate feedback. Faster collimation process. Can be used in low-light conditions.	More expensive than a collimation cap. Requires careful alignment of the laser. Can be less accurate than a Cheshire eyepiece. Laser beam can be difficult to see in bright conditions without additional accessories.
Cheshire Eyepiece	Highly accurate. Provides a clear view of the mirror alignment. Can be used in a variety of lighting conditions.	More expensive than a collimation cap. Requires some experience to use effectively. Can be slower than using a laser collimator.

Selecting the Right Collimation Tool

Choosing the right tool is a personal decision, influenced by factors like experience and budget. Here’s a step-by-step guide to help you choose:

Beginner: If you’re new to collimation, start with a collimation cap. It’s inexpensive and will allow you to learn the basic principles.
Intermediate: Once you’re comfortable with the collimation cap, consider upgrading to a laser collimator or a Cheshire eyepiece. The laser collimator offers speed and ease of use, while the Cheshire eyepiece provides greater precision.
Advanced: For the most accurate collimation, a Cheshire eyepiece is often preferred. Some experienced users utilize a combination of tools, such as using a laser collimator for initial alignment and then refining the collimation with a Cheshire eyepiece.
Budget: If budget is a major concern, a collimation cap is the most affordable option. Laser collimators and Cheshire eyepieces are more expensive, with Cheshire eyepieces often costing more than laser collimators.

Remember that practice is key. Regardless of the tool you choose, the more you collimate your telescope, the better you’ll become at it.

Preparation Before Collimation

Before you dive into collimating your reflector telescope, taking some preliminary steps ensures a smoother and more accurate process. These preparations are crucial for achieving optimal performance from your telescope and avoiding frustration. This section Artikels the necessary steps to get your telescope ready for collimation.

Allowing the Telescope to Cool

Temperature differences between the telescope and the ambient air can significantly affect image quality.Allowing the telescope to cool down to the ambient temperature is a critical step before collimation. This process, often referred to as thermal equilibrium, minimizes the effects of air currents within the telescope tube. These currents, caused by temperature differences, can distort the light path and degrade the image.

The larger the telescope, the more significant this effect becomes.

The Physics Behind It: Warm air inside the telescope tube rises, creating convection currents. These currents act like tiny lenses, refracting and distorting the incoming starlight. This results in blurry or unstable images, making accurate collimation impossible.
Cooling Time: The required cooling time depends on the telescope’s size and the temperature difference. A small telescope might cool down in an hour or two, while a larger one could take several hours, even overnight, to reach thermal equilibrium.
Mitigation Strategies: Using a cooling fan, if your telescope has one, can significantly speed up the cooling process. Placing the telescope outdoors in a shaded area before observing also helps.
Real-World Example: Imagine observing a planet on a cold night with a telescope that hasn’t cooled down. The planet’s image will appear to “boil” or shimmer due to the air currents. Once the telescope reaches ambient temperature, the image will stabilize, and fine details will become visible.

Identifying Telescope Direction

Knowing the direction your telescope is pointing is essential for aligning with celestial objects and understanding the orientation of the optics.Determining the telescope’s direction can be achieved using a compass and a star chart. This helps you understand where the telescope is pointing relative to the cardinal directions (North, South, East, and West) and the celestial sphere.

Using a Compass: A compass provides a reliable way to determine the direction of North. Place the compass near the telescope and note the direction the telescope tube is pointing. Be aware of any nearby metallic objects that could interfere with the compass reading.
Using a Star Chart: A star chart is a map of the night sky, showing the positions of stars and constellations.
- Locate a Bright Star: Identify a bright, easily recognizable star in the sky.
- Match to the Chart: Use the star chart to find the same star and its position relative to the horizon and the cardinal directions.
- Orient the Telescope: Align the telescope’s direction with the corresponding direction on the star chart. For instance, if the star is to the East, point the telescope in that direction.
Combination for Accuracy: Use both a compass and a star chart for the most accurate direction finding. The compass provides a quick reference, while the star chart confirms the orientation and allows for the identification of celestial objects.

Ensuring Telescope Stability

A stable telescope mount is fundamental for accurate collimation and observing. Any movement or vibration will disrupt the alignment process and negatively affect the image quality.

Mount Types: Ensure the telescope is securely mounted on a stable tripod or mount. Different types of mounts, such as equatorial and Dobsonian, have their own stability considerations.
- Equatorial Mounts: Properly balance the telescope on the mount and tighten all locking knobs securely.
- Dobsonian Mounts: Ensure the base is level and that the telescope tube moves smoothly without any binding.
Tripod Considerations: If using a tripod, make sure the legs are fully extended and firmly planted on the ground. Avoid setting up on uneven or unstable surfaces. Consider using a spreader to increase stability.
Vibration Mitigation: Minimize vibrations by avoiding touching the telescope during collimation. Observe the telescope’s behavior to identify and address any sources of vibration, such as wind or nearby movement.
Testing for Stability: Before collimating, gently tap the telescope tube or mount and observe if the image in the eyepiece moves significantly. If the image wobbles excessively, the mount needs to be adjusted or stabilized further.

Collimation Procedures with a Collimation Cap

Collimation caps are a simple yet effective tool for aligning your reflector telescope. They provide a visual reference that simplifies the process, making it easier to achieve optimal optical performance. Using a collimation cap is a straightforward process that, when done correctly, will significantly improve your telescope’s image quality.

Steps for Collimation with a Collimation Cap

The collimation cap provides a precise view of the optical path, making the alignment process more intuitive. Here are the detailed steps:

Insert the Collimation Cap: Securely place the collimation cap into the focuser of your telescope. Ensure it is properly seated and centered.
Look Through the Cap: Look through the small aperture of the collimation cap. You should see the reflection of the primary mirror, the secondary mirror, and, if collimation is already partially correct, the reflection of the collimation cap itself.
Center the Secondary Mirror: The goal here is to center the reflection of the secondary mirror within the view of the collimation cap. This is achieved by adjusting the screws on the secondary mirror holder.

If the secondary mirror’s reflection is off-center, adjust the screws on the secondary mirror holder to move it until it appears centered within the collimation cap’s view. Make small adjustments, and re-check the view after each adjustment.
The secondary mirror should appear as a circle within the view of the collimation cap. Its reflection should also be a circle, centered within the primary mirror’s reflection.

Center the Primary Mirror: Now, focus on the primary mirror. The reflection of the collimation cap and the secondary mirror should be centered within the primary mirror’s reflection.

If the reflections are off-center, you’ll need to adjust the primary mirror’s collimation screws. These screws are typically located on the back of the telescope.
Use the screws to tilt the primary mirror until the reflections are perfectly centered. Again, make small adjustments and re-check the view.

Fine-Tune and Recheck: Once the primary and secondary mirror reflections appear centered, fine-tune the adjustments. Re-check the alignment by looking through the collimation cap multiple times, making any minor corrections as needed.
Test with a Star: After collimating with the cap, the final step is to test the collimation using a bright star. Aim the telescope at a bright star and examine its image. If the star appears as a tight, symmetrical point of light, your collimation is likely excellent. If you see a distorted image, make minor adjustments to the primary mirror until the star appears perfectly focused.

Centering the Secondary Mirror Using the Collimation Cap

Centering the secondary mirror is a critical first step in collimation. Correct secondary mirror positioning ensures that light is directed properly towards the focuser. The collimation cap aids in this process by providing a visual reference for centering the mirror.

Initial Assessment: When you look through the collimation cap, the reflection of the secondary mirror should be visible. Note its position relative to the center of the primary mirror’s reflection.
Adjusting the Secondary Mirror: Use the adjustment screws on the secondary mirror holder to move the secondary mirror. These screws usually allow for tilting and shifting the mirror’s position.

If the secondary mirror’s reflection is off-center towards one side, adjust the screws to move it towards the center.
If the secondary mirror is tilted, adjust the screws to make its reflection appear circular and centered.

Visual Feedback: Look through the collimation cap frequently after each adjustment. The goal is to make the secondary mirror’s reflection appear perfectly centered within the view of the collimation cap.
Iteration and Refinement: The centering process might require several iterations. Make small adjustments and re-check the view each time. This iterative approach allows for precise centering.

Adjusting the Primary Mirror for Optimal Alignment

After centering the secondary mirror, the primary mirror needs to be adjusted to ensure the entire optical system is aligned. This involves tilting the primary mirror until the reflections of the secondary mirror and collimation cap are centered.

Locate the Primary Mirror Adjustment Screws: The primary mirror is usually adjusted using three or more collimation screws located on the back of the telescope. Identify these screws.
Initial Observation: Look through the collimation cap. The reflections of the secondary mirror and the collimation cap itself should be visible. Observe their position relative to the center of the primary mirror’s reflection.
Making Adjustments: Turn the primary mirror adjustment screws. The goal is to tilt the primary mirror until the reflections are centered.

If the reflections are off-center, turn the screws to move them towards the center.
Adjust the screws in small increments, as small changes can significantly impact the alignment.

Visual Confirmation: After each adjustment, look through the collimation cap to see how the reflections have shifted. Continue adjusting the screws until the reflections of the secondary mirror and the collimation cap appear perfectly centered within the primary mirror’s reflection.
Final Check: Once the reflections appear centered, the primary mirror is correctly aligned. Make a final check to ensure that the star test confirms that the collimation is optimal.

Collimation Procedures with a Laser Collimator

Laser collimators offer a more precise and often easier method for aligning your reflector telescope compared to using a collimation cap. They project a laser beam down the optical path, allowing you to visually assess the alignment of the mirrors. This method can be particularly helpful for those new to collimation or for telescopes that are difficult to collimate using a collimation cap alone.

Using a Laser Collimator for Accurate Alignment

A laser collimator provides a highly accurate means of collimating a reflector telescope. The principle relies on the laser beam reflecting off the mirrors and returning to the collimator itself, indicating any misalignment. A properly collimated telescope will have the laser beam returning precisely to the center of the collimator’s aperture. This method generally requires fewer adjustments compared to other methods and offers a clear visual indicator of alignment.

The key is to understand how the laser beam behaves when the mirrors are misaligned and how to correct for those deviations.

Step-by-Step Guide on Using a Laser Collimator

Collimating with a laser collimator involves a series of straightforward steps. Remember to perform these steps in a location with low ambient light to ensure the laser beam is easily visible.

Insert the Laser Collimator: Remove the eyepiece from your focuser and insert the laser collimator into the focuser drawtube. Ensure it is securely fastened.
Turn on the Laser: Activate the laser collimator. The laser beam should project down the telescope tube towards the primary mirror.
Adjust the Secondary Mirror: Observe the laser dot on the primary mirror. If the dot is not centered, adjust the secondary mirror screws to center the laser dot. This aligns the secondary mirror to the optical axis. The goal is to make the laser beam hit the center of the primary mirror.
Adjust the Primary Mirror: Observe the laser beam returning from the primary mirror. Ideally, the beam should return directly back into the collimator’s aperture. If it’s offset, adjust the primary mirror collimation screws (usually located at the back of the telescope) until the laser beam is centered on the collimator. This process might involve small, iterative adjustments to both the secondary and primary mirrors.
Fine-Tune and Verify: Once the laser beam appears to be centered on the collimator, recheck the alignment by rotating the laser collimator slightly within the focuser. If the beam remains centered during rotation, your collimation is likely accurate. If the beam moves, further fine-tune the primary mirror adjustments.
Final Check: After completing the collimation process, insert an eyepiece and view a bright star. If the star appears as a sharp, pinpoint of light, your collimation is successful. If the star shows a distorted image or flares, further fine-tuning may be required.

Common Issues and Troubleshooting with a Laser Collimator

Using a laser collimator, while generally straightforward, can present certain challenges. Here’s a breakdown of common issues and how to resolve them:

Laser Dot Not Centered on Primary Mirror: If the laser dot isn’t hitting the center of the primary mirror, it indicates the secondary mirror is misaligned. Adjust the secondary mirror screws to center the laser dot. This usually involves adjusting the screws until the dot is perfectly centered, or as close as possible, on the primary mirror’s center spot.
Laser Dot Not Returning to Collimator: This means the primary mirror is not aligned. Adjust the primary mirror collimation screws. The goal is to make the reflected laser beam re-enter the collimator’s aperture.
Laser Dot Wobbles During Rotation: If the laser dot moves off-center when the collimator is rotated in the focuser, the focuser itself may not be perfectly aligned with the optical axis. Check the focuser’s alignment and consider using a high-quality focuser or shimming the focuser to correct for any misalignment.
Collimator Not Seated Securely: Ensure the laser collimator is securely fastened in the focuser. A loose collimator can lead to inaccurate readings. Tighten the set screws or use a compression ring to hold it firmly in place.
Laser Collimator is Damaged or Misaligned: A damaged or poorly manufactured laser collimator will give inaccurate readings. Verify the collimator’s alignment by rotating it in a well-collimated telescope. If the laser beam wanders significantly, the collimator itself may be the problem. Consider replacing it or checking its internal alignment.
Primary Mirror Clip Interference: Some telescopes have mirror clips that can obstruct the laser beam, making collimation difficult. Adjust the mirror clips or, if possible, remove them temporarily during collimation to avoid interference.

Collimation Procedures with a Cheshire Eyepiece

How To Collimate a Telescope? A Beginner's Guide

The Cheshire eyepiece offers a precise and visually-driven method for collimating reflector telescopes. It is a highly effective tool, particularly for beginners, because it allows for direct observation of the optical components and their alignment. The Cheshire eyepiece provides a clear view of the secondary mirror and primary mirror, enabling the user to make adjustments until the optical path is perfectly aligned.

Aligning the Secondary Mirror with a Cheshire Eyepiece

Proper alignment of the secondary mirror is crucial for optimal telescope performance. This process involves ensuring the secondary mirror is centered in the focuser tube and correctly angled to reflect light from the primary mirror towards the eyepiece. The Cheshire eyepiece facilitates this alignment by providing visual cues that guide the user through the necessary adjustments.To align the secondary mirror using a Cheshire eyepiece, follow these steps:

Insert the Cheshire Eyepiece: Place the Cheshire eyepiece into the telescope’s focuser. Look through the eyepiece. You should see a crosshair (or a small reticle) and a hole at the bottom. The hole is critical as it provides the light path for viewing.
Center the Secondary Mirror: Observe the secondary mirror’s reflection in the Cheshire eyepiece. The goal is to center the secondary mirror within the focuser tube. Adjust the secondary mirror’s position using the adjustment screws on its holder until it appears centered.
Align the Secondary Mirror with the Primary Mirror: Look through the Cheshire eyepiece again. The primary mirror’s reflection should be visible. Adjust the tilt of the secondary mirror using its adjustment screws until the reflection of the primary mirror appears centered within the secondary mirror. The reflection of the primary mirror should also appear centered within the Cheshire eyepiece’s view. If the primary mirror reflection is not a perfect circle, that indicates the primary mirror is not yet centered, and you may need to adjust the primary mirror.
Check the Alignment of the Primary Mirror Reflection: With the secondary mirror now aligned, the Cheshire eyepiece should reveal the reflection of the primary mirror, and the reflection of the primary mirror’s center spot (if present).
Fine-Tune: Once the primary mirror is centered, fine-tune the alignment. Make small adjustments to the secondary mirror’s tilt until the reflection of the primary mirror and the center spot are perfectly concentric within the Cheshire eyepiece’s view.

Adjusting the Primary Mirror Using a Cheshire Eyepiece

After the secondary mirror is aligned, the next step is to adjust the primary mirror. The Cheshire eyepiece allows for precise adjustment of the primary mirror’s tilt to ensure it reflects light directly into the focuser and, subsequently, to the eyepiece.To adjust the primary mirror using a Cheshire eyepiece, follow these steps:

View the Cheshire Eyepiece: Ensure the Cheshire eyepiece is still inserted in the focuser.
Identify the Primary Mirror’s Reflection: The Cheshire eyepiece will show the reflection of the secondary mirror and the primary mirror. The primary mirror’s reflection should be a centered, circular view of the primary mirror.
Adjust the Primary Mirror: The primary mirror is usually adjusted using three or more screws located at the back of the telescope tube. These screws control the tilt of the primary mirror.
Center the Reflection: Look through the Cheshire eyepiece and make small adjustments to the primary mirror’s adjustment screws. The goal is to center the reflection of the secondary mirror within the primary mirror’s reflection and also the reflection of the center spot (if present) of the primary mirror. The goal is to make all these concentric. If the primary mirror’s reflection is not a perfect circle, that indicates that the primary mirror needs adjustment.
Fine-Tune: Continue to make small adjustments to the primary mirror’s screws until the reflection of the secondary mirror and the center spot are perfectly centered in the Cheshire eyepiece. This will likely involve a back-and-forth process, as adjusting one screw will affect the alignment.
Recheck Secondary Mirror: After adjusting the primary mirror, briefly recheck the secondary mirror’s alignment to ensure it hasn’t shifted during the primary mirror adjustments. Make minor corrections if needed.

Fine-Tuning and Verification

Achieving excellent collimation is a process of refinement. While the initial collimation steps using a collimation cap, laser, or Cheshire eyepiece are crucial, fine-tuning and verification are essential for extracting the maximum performance from your reflector telescope. This final stage ensures that all optical elements are perfectly aligned, leading to sharper, more detailed views.

Importance of Fine-Tuning Collimation

Fine-tuning collimation significantly impacts the quality of the images you see through your telescope. It’s the final polish that brings out the best in your optics. Even a slight misalignment can degrade image quality, leading to a loss of sharpness, contrast, and resolution, especially at higher magnifications.

Verifying Collimation Through Star Testing

Star testing is a powerful method for assessing the accuracy of your collimation. It involves observing a bright star, such as Vega or Sirius, at high magnification. The appearance of the star’s diffraction pattern provides valuable information about the alignment of your telescope’s optics.To perform a star test:

Choose a Suitable Star: Select a bright star located high in the sky and away from atmospheric turbulence. Avoid stars near the horizon.
Achieve Thermal Equilibrium: Allow your telescope to reach thermal equilibrium with the surrounding environment. This minimizes the effects of air currents inside the tube.
Use High Magnification: Insert an eyepiece that provides a high magnification, typically at least 20x per inch of aperture. For example, a 6-inch telescope would benefit from a 120x magnification eyepiece.
Center the Star: Carefully center the star in the field of view.
Observe the Diffraction Pattern: Examine the star’s diffraction pattern. This pattern consists of a bright central disk (the Airy disk) surrounded by concentric rings. A perfectly collimated telescope will show a symmetrical pattern.

A perfectly collimated telescope will display a star with a symmetrical diffraction pattern, consisting of a bright central Airy disk surrounded by concentric rings of equal brightness and spacing. Any deviation from this symmetry indicates a collimation error. Atmospheric turbulence can also affect the appearance of the star, so it’s important to choose a night with good seeing conditions.

Making Minor Adjustments Based on Star Test Observations

Based on the star test observations, you can make small adjustments to the collimation of your telescope. The specific adjustments depend on the observed pattern.Here’s a guide to interpreting common star test patterns and the corresponding adjustments:

Symmetrical, but Slightly Offset Airy Disk: This indicates a minor collimation error. Slightly adjust the primary mirror collimation screws to recenter the Airy disk.
Asymmetrical Diffraction Rings: If the rings are brighter on one side, it suggests a misalignment of the primary mirror. Adjust the primary mirror collimation screws in the direction of the brighter rings until the rings become more symmetrical.
Coma (Comet-Shaped Appearance): Coma, where the star appears comet-shaped, is often caused by misalignment of the secondary mirror. Adjust the secondary mirror position or tilt to minimize the coma. This may involve adjusting the screws holding the secondary mirror in place.
Astigmatism (Elongated Airy Disk): Astigmatism, where the Airy disk is elongated, can be caused by stressed optics or an improperly seated mirror. Ensure the mirrors are properly seated and the tube is not pinching the optics.

Remember that these adjustments are small and incremental. Make a small adjustment, observe the star again, and repeat until the diffraction pattern appears symmetrical. Patience and a careful approach are key to achieving optimal collimation.

Common Collimation Mistakes and How to Avoid Them

Collimating a reflector telescope is a skill that improves with practice. Even experienced users can occasionally make mistakes. Understanding these common pitfalls and knowing how to correct them will significantly improve your collimation accuracy and observing experience. This section will address some frequent errors and offer practical solutions.

Incorrectly Centered Primary Mirror

A properly centered primary mirror is crucial for optimal performance. If the primary mirror is not centered in the tube, the light path will be skewed, leading to poor image quality and off-axis aberrations.To address this issue:

Check the Mirror Cell: Ensure the primary mirror is correctly seated within its cell. The cell should hold the mirror securely without undue pressure. If the mirror is loose or tilted within the cell, it will be difficult to collimate accurately.
Centering the Mirror: Use the collimation cap or laser collimator to verify the mirror’s centering. Observe the reflection of the collimation tool’s reticle or laser dot. If the reflection is off-center, adjust the primary mirror cell’s adjustment screws until the reflection is centered within the collimation tool’s view. Some telescopes have a central mark on the primary mirror to aid in centering.
Collimation Cap Reflection: If using a collimation cap, ensure the cap is perfectly aligned with the focuser drawtube. If the cap is tilted, the reflection will appear off-center, even if the primary mirror is correctly positioned.

Failing to Tighten Collimation Screws Sufficiently

Loose collimation screws can allow the mirrors to shift during use, leading to de-collimation. This is particularly problematic with Newtonian telescopes, where the mirrors are susceptible to movement.To mitigate this:

Proper Tension: After making adjustments, tighten the collimation screws firmly, but avoid over-tightening, which can stress the mirrors. The screws should be snug enough to hold the mirrors in place but not so tight that they distort the mirror surfaces.
Locking Mechanisms: Consider using locking screws or setscrews to secure the collimation screws. These mechanisms prevent the screws from loosening due to vibration or temperature changes. Some telescopes have spring-loaded collimation screws, which help maintain tension.
Regular Checks: Regularly check the collimation screws, especially after transporting or storing the telescope. A quick visual inspection can often identify loose screws.

Using the Wrong Collimation Tools

Selecting the right tools is important for effective collimation. Using tools that are not suitable for the task can lead to inaccurate adjustments and frustration.

Choosing the Right Tool: The choice of collimation tool depends on your experience and the telescope type. A collimation cap is a good starting point for beginners. A laser collimator offers greater precision but requires more careful setup. A Cheshire eyepiece provides a detailed view of the light path and is useful for advanced collimation.
Tool Quality: Invest in quality collimation tools. Inexpensive tools may not be accurately manufactured, leading to collimation errors. Check the tool’s alignment before using it.
Laser Collimator Alignment: When using a laser collimator, ensure the laser is perfectly aligned with the focuser drawtube. If the laser is tilted, the reflected dot will appear off-center, even if the mirrors are correctly aligned. Rotate the laser collimator in the focuser to check for any wobble or misalignment.

Not Adjusting Both Mirrors Simultaneously

Collimation involves adjusting both the primary and secondary mirrors to align the light path. Failing to coordinate adjustments can lead to a circular process where adjustments on one mirror negate the effects of adjustments on the other.To avoid this:

Systematic Approach: Follow a systematic approach, such as the one described in the “Collimation Procedures” sections. Begin with the secondary mirror, aligning it to the focuser and then to the primary mirror. Then, adjust the primary mirror to center the reflected image of the secondary mirror.
Small Increments: Make small, incremental adjustments to each mirror. Large adjustments can make it difficult to see the effect of each change.
Check and Recheck: After each adjustment, re-check the alignment using your chosen collimation tool. The process is iterative, and you may need to go back and forth between the primary and secondary mirrors until optimal collimation is achieved.

Collimating in Poor Seeing Conditions

Atmospheric turbulence (seeing) can distort the image, making it difficult to assess collimation accuracy. Collimating during periods of poor seeing can lead to over-correction or under-correction.

Observing Conditions: Collimation is best performed under stable atmospheric conditions. Wait for a night with steady seeing, when stars appear to twinkle less.
Star Test: After collimation, perform a star test to verify the alignment. Focus on a bright star and observe the diffraction rings. Properly collimated telescopes will show concentric diffraction rings.
Planetary Observation: Observing planets can also help refine collimation. Planets show fine details, such as bands on Jupiter or the rings of Saturn, allowing you to assess image sharpness and identify any remaining collimation errors.

Relying Solely on One Collimation Tool

While a single tool can get you close, relying on it exclusively may not result in optimal collimation. Different tools offer different perspectives and levels of precision.To overcome this:

Multiple Tools: Use a combination of collimation tools. Start with a collimation cap or laser collimator for initial alignment, then refine the collimation using a Cheshire eyepiece or star test.
Star Testing: Always perform a star test to verify collimation accuracy. This involves focusing on a bright star and observing the diffraction pattern.
Cross-Checking: Compare the results obtained with different tools. If the tools give conflicting results, investigate the source of the discrepancy.

Ignoring the Focuser Alignment

The focuser must be perfectly aligned with the optical axis of the telescope. A misaligned focuser can introduce distortions and make it difficult to achieve optimal collimation.To check and correct focuser alignment:

Visual Inspection: Visually inspect the focuser drawtube for any tilt or misalignment. The drawtube should be perpendicular to the telescope tube.
Laser Collimator Check: Insert a laser collimator into the focuser and observe the laser dot’s position on the primary mirror. If the dot is off-center, the focuser may be misaligned.
Adjustment: Most focusers have adjustment screws that allow you to correct minor misalignments. Consult your telescope’s manual for instructions on how to adjust the focuser.

Maintenance and Long-Term Collimation

Maintaining proper collimation is crucial for optimal telescope performance. Over time, factors like temperature changes, physical handling, and vibrations can nudge your telescope out of alignment. Regular checks and adjustments are essential to ensure you’re getting the best possible views.

Factors Causing De-collimation

Several factors can contribute to a reflector telescope losing its collimation. Understanding these factors allows you to take preventative measures and address issues promptly.

Temperature Fluctuations: Changes in temperature can cause the telescope’s components to expand or contract at different rates. This can shift the alignment of the mirrors, especially the primary mirror. The difference between daytime and nighttime temperatures, or even the temperature inside a car compared to the outside, can be enough to affect collimation.
Physical Handling and Movement: Transporting your telescope, even in a case, can introduce vibrations and shocks that disrupt the alignment. Bumping the telescope, accidentally touching the mirrors, or even just moving it around can cause de-collimation.
Gravity and Orientation: Over time, gravity can subtly affect the primary mirror’s position, particularly in larger telescopes or those with less robust mirror cells. The orientation of the telescope when stored can also play a role.
Mechanical Issues: Loose screws, worn-out adjustment mechanisms, or problems with the mirror cell can also lead to de-collimation. Regular inspection of these components is vital.
Age and Material Degradation: With age, some telescope components, such as the mirror coatings, may degrade. This doesn’t directly cause de-collimation, but it can affect image quality, making collimation adjustments seem less effective.

Visual Representation of Light Path

The following diagram illustrates the light path within a reflector telescope. Understanding this path helps visualize how misalignments affect the final image.

Diagram Description: This diagram depicts a Newtonian reflector telescope. Incoming starlight enters the telescope tube and strikes the primary mirror, a concave mirror at the bottom of the tube. The primary mirror reflects the light towards the secondary mirror, a small, flat, diagonal mirror positioned near the top of the tube. The secondary mirror then reflects the light sideways, out of the telescope tube and into the eyepiece.

The eyepiece magnifies the image formed by the combined reflection of the primary and secondary mirrors, allowing the observer to view the celestial object. The diagram clearly shows the importance of precise alignment for each reflection to achieve a focused image. The light path is represented by arrows, demonstrating how misalignment in either mirror can lead to a distorted or blurry image.

Last Recap

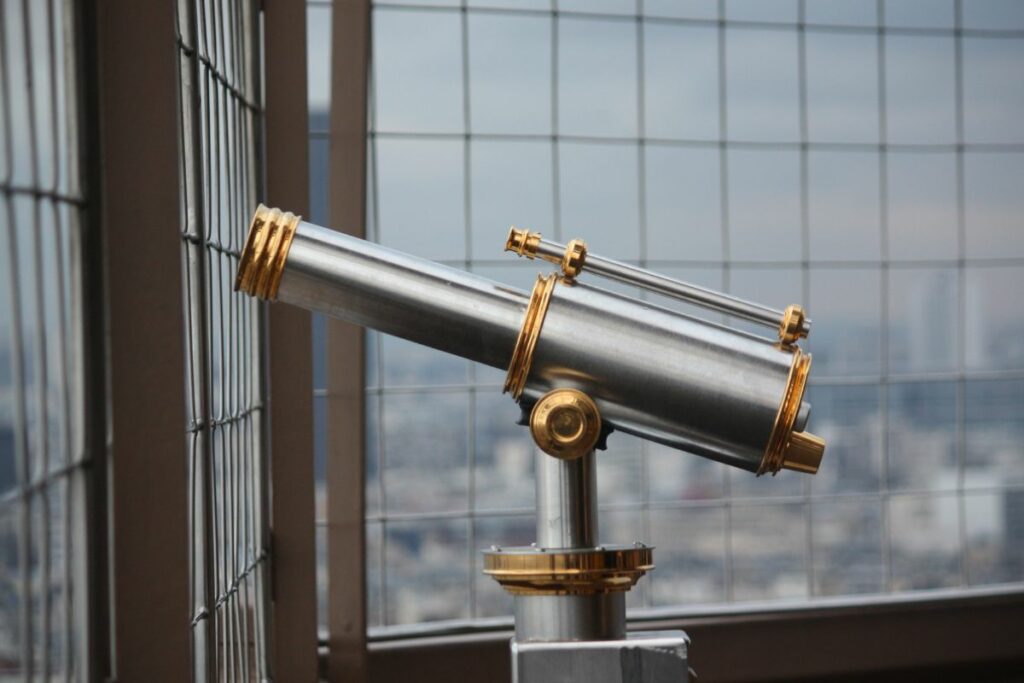

How To Collimate A Telescope - Telescope Guru

In conclusion, mastering the art of collimating your reflector telescope is an investment in your astronomical pursuits. By understanding the principles, utilizing the right tools, and following the procedures Artikeld, you’ll transform your telescope into a precision instrument, revealing the breathtaking beauty of the night sky. Remember to practice, be patient, and continuously fine-tune your collimation for the most rewarding observing experiences.

With proper collimation, you’ll be well on your way to exploring the universe’s wonders.
